Installation Guide Document

Overview

Horizon iOS SDK provides an easy to use library for developers who want to add video recording capabilities to their iOS apps.

Horizon iOS SDK is built on top of the AVFoundation stack, is GPU accelerated and has full support for realtime, predefined and custom CIFilter instances.

This guide describes the setup of Horizon SDK. For a quick start coding guide, take a look and the Quick Start document.

Project Setup

Prerequisites

In order to follow this guide, you must have the iOS 10.0 SDK and Xcode 8.0 installed on your system. For the latest versions, please visit Apple’s iOS Dev Center.

Run time requirements

The minimum iOS version supported by the SDK is iOS 8.0.

Select installation method

You can get Horizon SDK either from CocoaPods or by manually downloading and installing it in your Xcode project.

CocoaPods

Open a command prompt in the Xcode project root directory (where the ‘YourProject.xcodeproj’ file is located).

If you do not yet have a Podfile for your project, run the following command to create an empty Podfile:

$ pod init

In a text editor, open the Podfile and add the following library name:

pod 'HorizonSDK'

At the command prompt, run the following command to install the HorizonSDK pod:

$ pod install

Manual Installation

Add files

Copy the HorizonSDK folder into your project (select “Create groups for any added folders” if needed). The folder consists of at least one static framework and one resource bundle. Each static library is a universal binary for use on iOS device and simulator architectures (armv7/64 and i386/x86_64).

Link against libraries

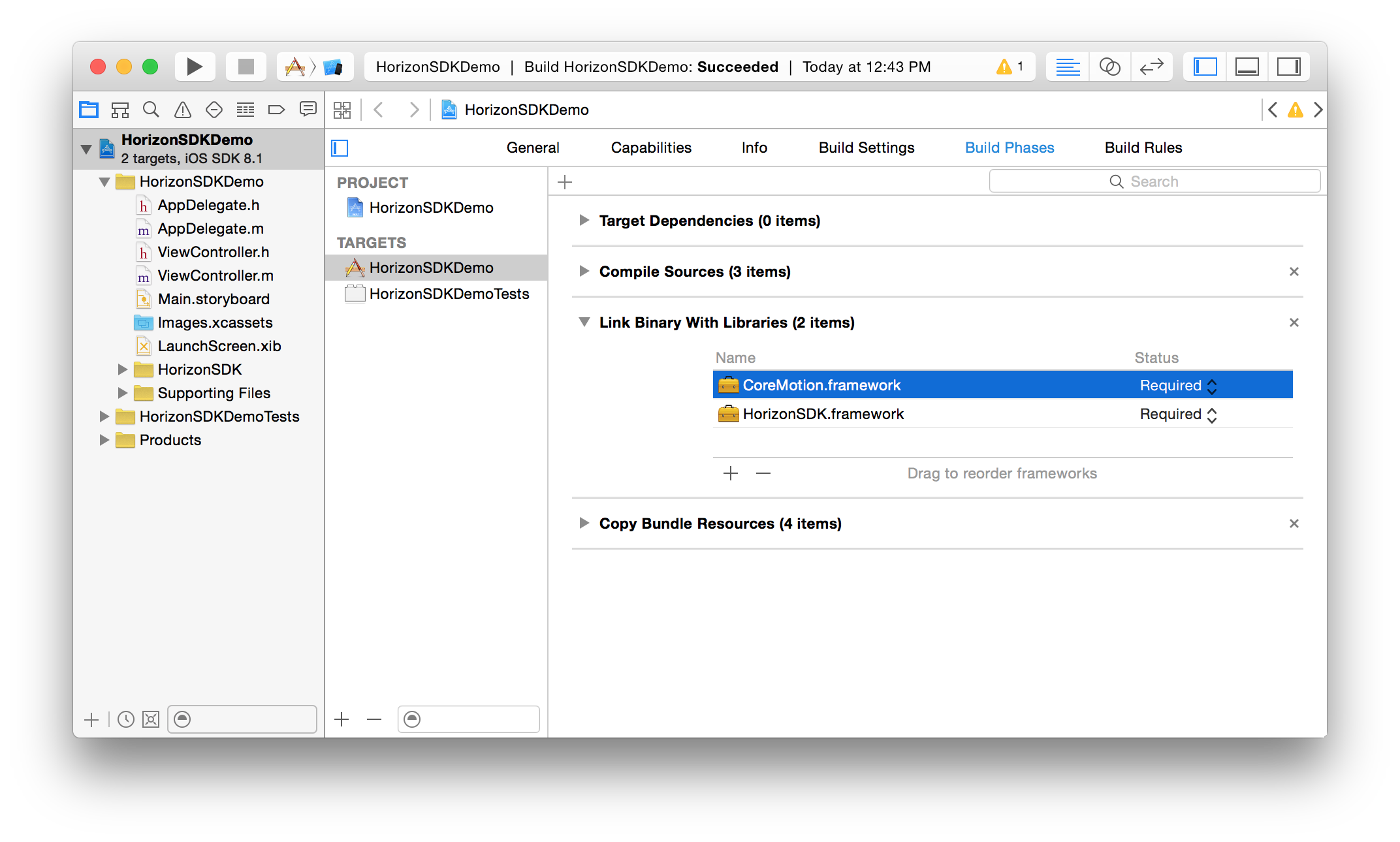

Visit your target’s “Link Binary With Libraries” build phase. Make sure added the following library:

CoreMotion.framework

Link other Frameworks automatically

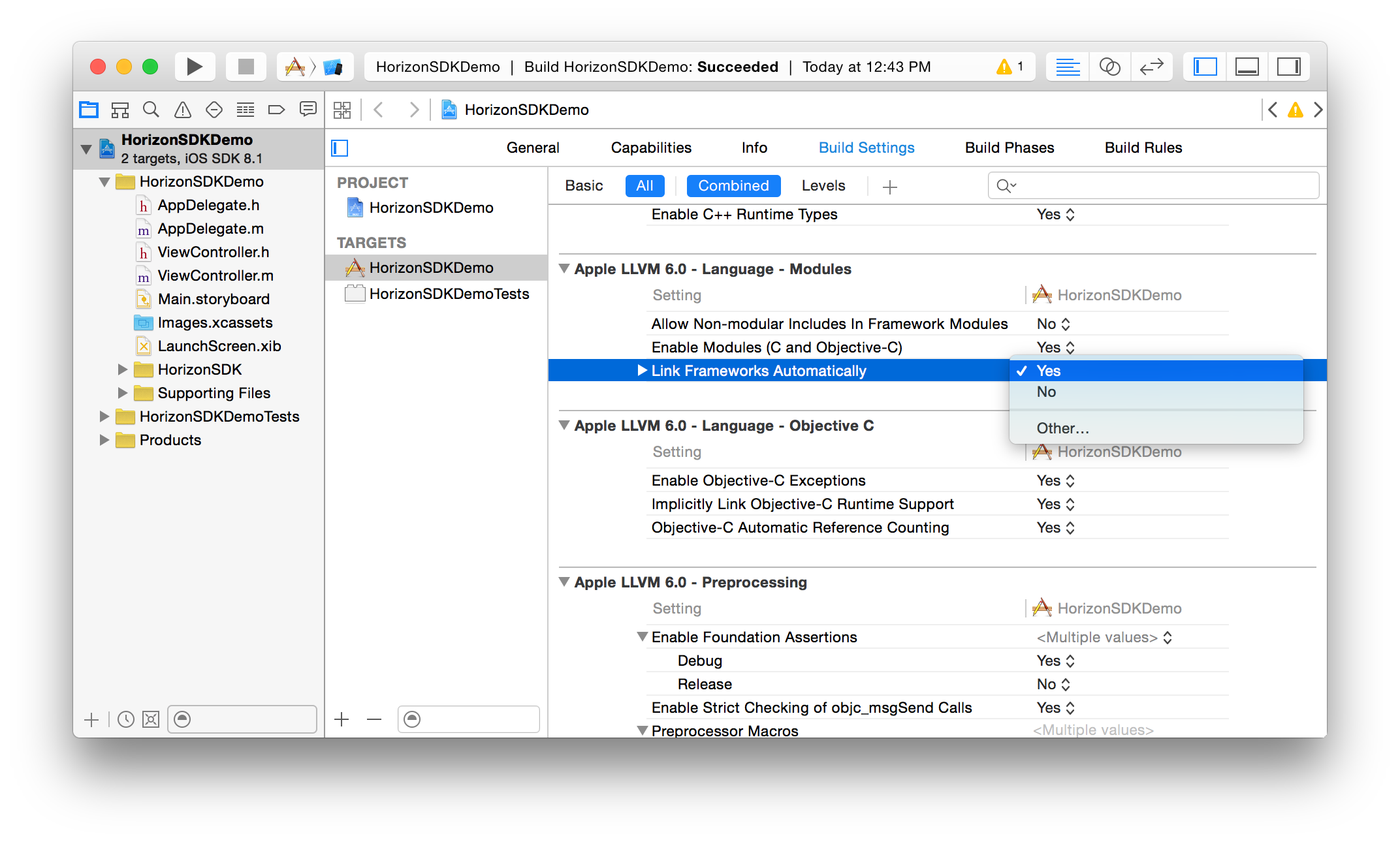

Make sure that the “Link Frameworks Automatically” option is set to YES (under Build Settings > Apple LLVM 6.0 - Language - Modules)

Add Linker Flags

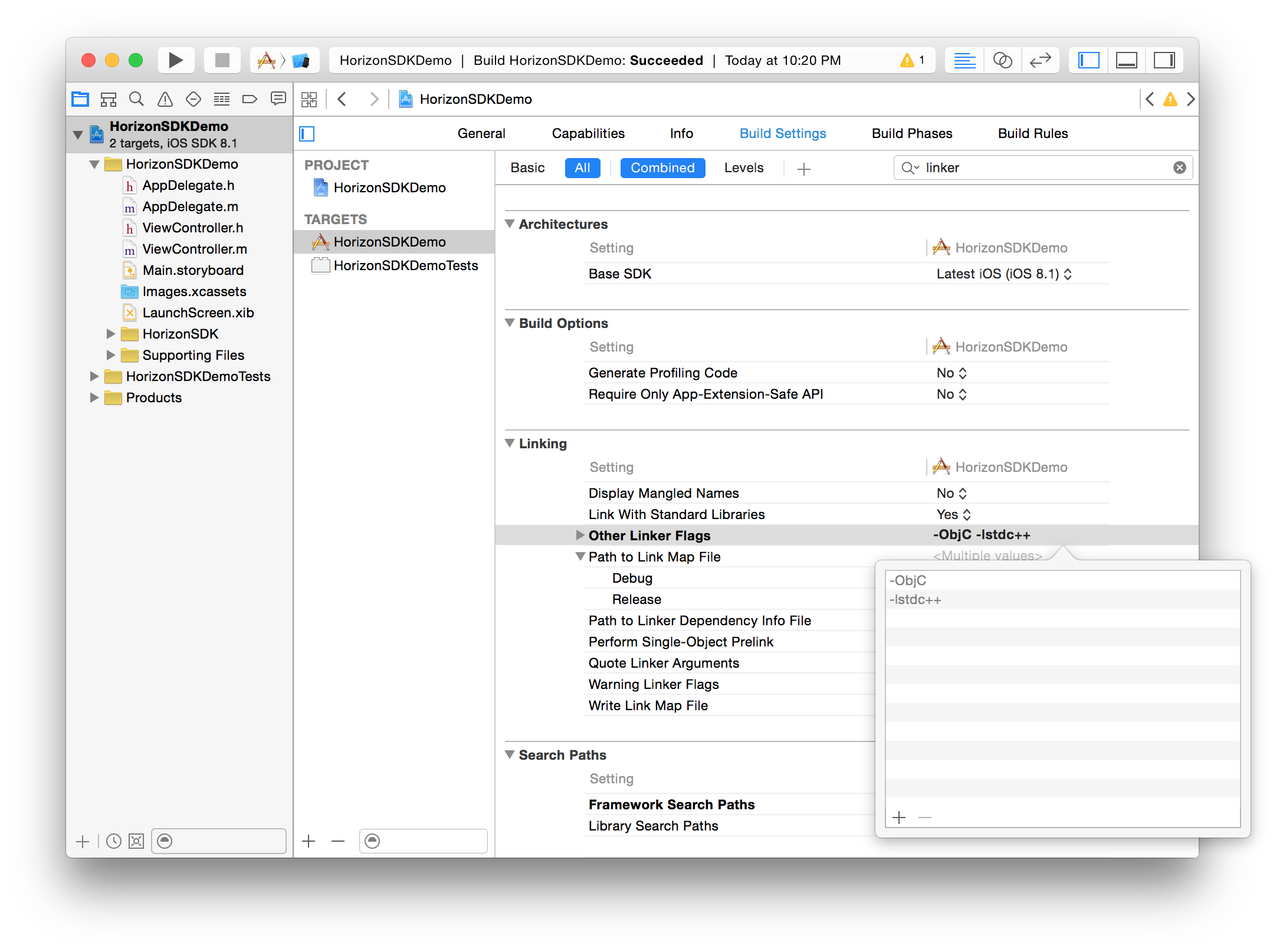

Update your target’s (or project’s) build settings to include the following “Other Linker Flags” (under Build Settings > Linking):

-ObjC

-lstdc++

Copy resources

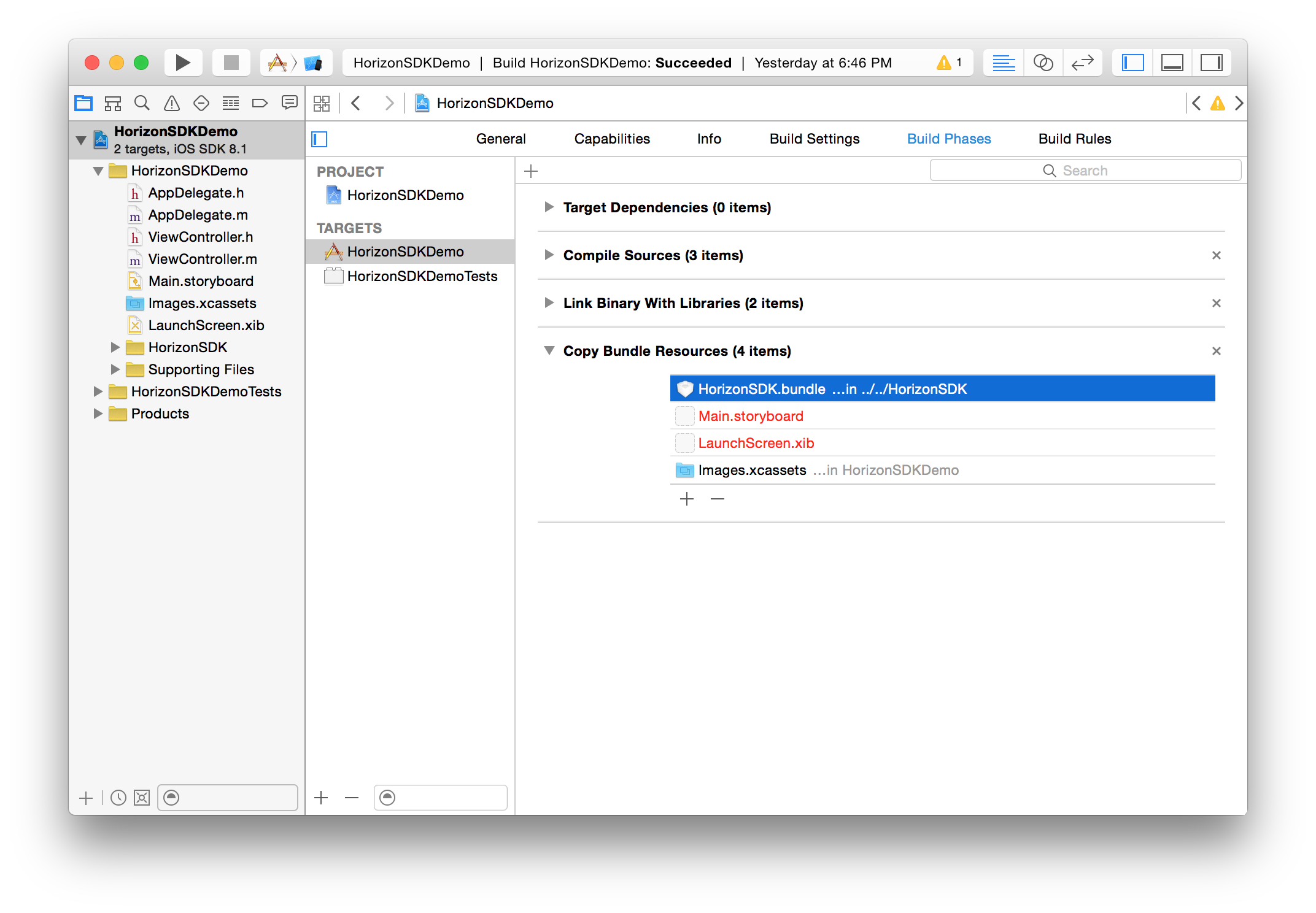

Make sure HorizonSDK.bundle is included in your target’s “Copy Bundle Resources” build phase.

Install documentation (optional)

If you would like to access the HorizonSDK documentation through the Organizer and Quick Help in Xcode, please copy com.hvt.Horizon-SDK.docset from the HorizonSDK Documentation directory into ~/Library/Developer/Shared/Documentation/DocSets/ and restart Xcode. From the console:

cp -r com.hvt.Horizon-SDK.docset ~/Library/Developer/Shared/Documentation/DocSets/

Installation complete!

You are now ready to use Horizon SDK and add video recording capabilities to your app! Learn how in our Quick Start guide.
